Ignition electrodes for gas
Our high quality ceramics allows us to make high voltage igniters. We produce all kinds of electrodes from various materials: INOX, KANTAL A or D, NICKEL ALLOY NiCr5MnSi. Isostatic press and injection moulding technologies enable the possibility to make all kinds of igniters, including the most demanding ones.
IGNITERS TYPE PB
can be made in different dimensions according to customers drawing. Type of electrode depend on application and temperature. Material of electrode can be composit NiCrMnSi or KANTHAL A-D. Diameter of electrode is according to customers request and it is mostly Ф 1,5 mm to Ф 6 mm.

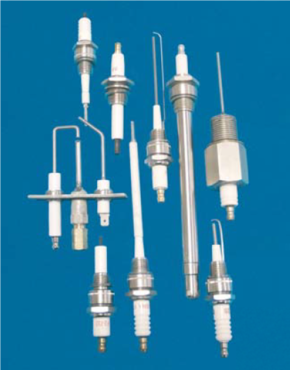

IGNITERS TYPE F
are produced in combination with metal body which can be in different sizes. Usually the thread on metal part is: M10, M12, M14 and M18. Material of electrode can be composit NiCrMnSi or KANTHAL A-D. According to customers request the metal body can be also made from stainless steel material

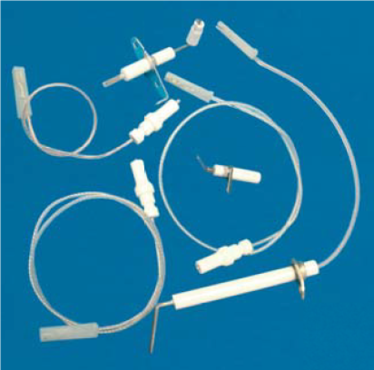

IGNITERS TYPE P
are usually made with connection cables and are used for kitchen appliances. Connectors, type and size of the cable can be produced according to customers request. Electrodes are mostly made from material NiCrMnSi and have diameter from Ф 1,8 to Ф 3,2 mm.
IGNITERS TYPE H
are produced in different sizes and are used in oven for different gas burners. Ceramic is made with or without glazing, according to customers request. The quality of ceramics can be from 95 % to 99,7 % Al2O3. The electrodes are made from nickel alloy NiCrMnSi or from material KANTHAL A-D.

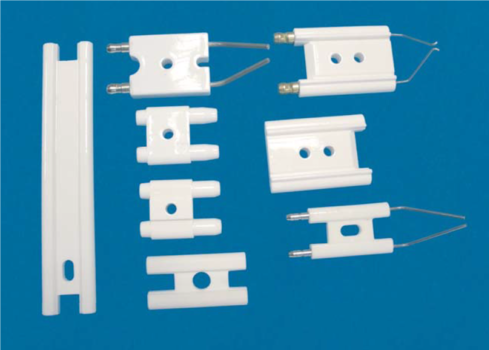

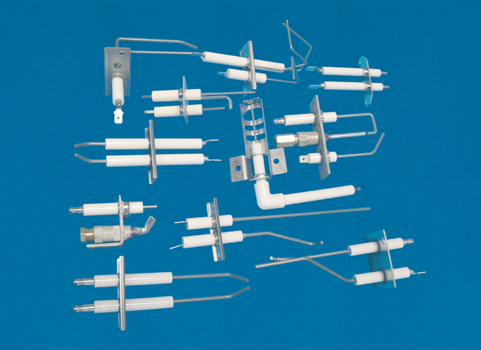

We are producing sets of igniters with different adjusting plates for attaching, different combinations and different shapes of electrodes. Adjusting plates can be made from standard steel covered with surface protection or from stainless steel. Electrodes are made from nickel alloy NiCrMnSi or from KANTHAL A-D.

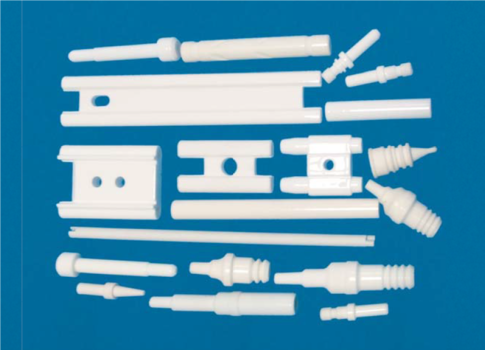

Besides the complete igniters we can also offer just isolators for igniters. Isolators are made from ceramics, which has quality from 95 % to 99,7 % Al2O3 and can be glazed or not glazed.
- - Production of all types of igniters
- - Short delivery time
- - Industrial igniters are our specialty
