Ceramic tubes and insulators for thermocouples

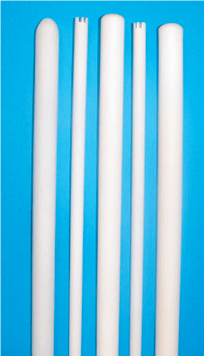

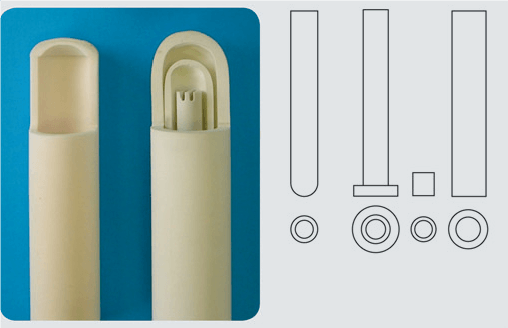

Our flexible equipment enables us wide range of various products; tubes and insulators for needs of thermocouple producers. We produce ceramic tubes and insulators from standard materials; C 530, C 610, C 799 but also from special materials according to buyers demand. Closed ceramic tubes are made from diameter 2 mm up to 50 mm with length up to max 2030 mm. We can offer You wide assortiment of ceramic isolators, starting from smallest pearls up to isolators with length 2060mm.

Download PDF

  • - Flexible sale
  • - Very short delivery term
  • - We are the only manufacturer with our own line of ceramic production, while we also produce complete metal-ceramic products ourselves;
  • - Ordering of minimal quantites without any restriction

The maximum applications temperature depends on the material. Application temperature is also influenced by the tube geometry, diameter, wall thickness and application method.

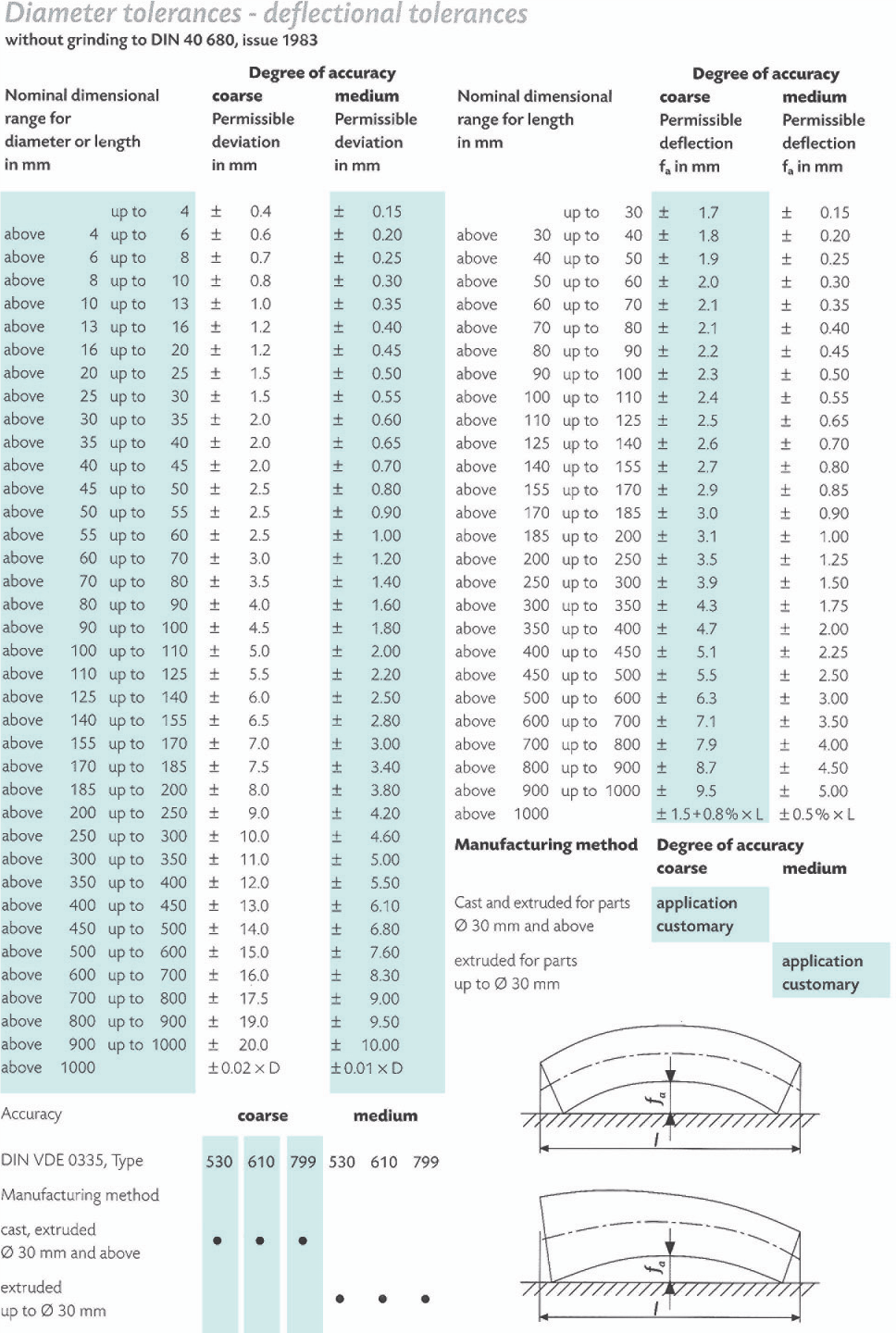

In this table are mentioned some standard dimensions for tubes and isolators. We can produce all other lengths, up to max 2100 mm, and other diameters from 2 mm to max 50 mm
